STRAVA SMART SPLINT PAN

TGA Approved: 227048

The Strava splint bath features a thermoset material for insulation, durability, and aesthetics with a digital touch-screen interface and bifold lid. Please Note: This item will incur additional freight charges. Our Customer Service team will contact you to make arrangements once you’ve placed your order. Alternatively, you can call us on 1300 672 937 to arrange a quote prior to ordering.

SKU: WEB000928

Type *
Unit of Measure *

Have a Question? Contact Us

See Similar Products

Code	Type	Unit of Measure
Code: NC14599	Type: Strava Smart Splint Pan	Unit of Measure: EA

In Stock Guide

Overview
Specifications
Documents & Downloads

Please Note: This item will incur additional freight charges. Our Customer Service team will contact you to make arrangements once you’ve placed your order. Alternatively, you can call us on 1300 672 937 to arrange a quote prior to ordering.

The Strava splint bath features a thermoset material for insulation, durability, and aesthetics. Its transparent lid and convection heat exchanger ensure even water heating. The unit is energy-efficient with automatic on/off, boasts easy water evacuation, and provides precise temperature readings. The LCD display is customizable. The bath tackles disinfection concerns with UV-C and high-heat cycles, ensuring 99.99% microbe-free water. Its 20L tub, made in the USA, prioritizes sanitation and measures 52cm x 60cm x 25.5cm (outer) and 30cm x 48cm x 15cm (inner).

IEC61010-2 safety rating for hospital and international compliance.

Strava BASIC - Economical

Automatic On/Off
Heats in 25 Minutes
User Sets Time & Temp
Visual Timer
Temperature Display
Audible/Visual Alerts
Digital Touch Interface
Low Water Sensor
Bi-Fold Stainless Steel Lid
Rapid Water Evacuation

Strava SMART - UVC Effective Sterilization

All the Basic features plus:
Water Circulation System
Dual Disinfection
UVC Germicidal Kill
High Heat Sanitation Cycle
Thermoplastic Presets
Custom Presets
Dual Filtration

Products specifications

Operating Temperature Range	60°c - 82°c
Sanitation Temperature	85°c
Water Fill Capacity	20 L
Unit Dimensions (Inner Tub)	48cm L X 30cm W X 15cm H
Unit Dimensions (Outer Tub)	60cm L X 52cm W X 25.5cm H
Unit Weight	15.9 kg

Product Files

Document Title	Description
Strava Splint Bath - Care Card		Download
Strava Splint Bath - Innovation Guide		Download
Strava Splint Bath - User Manual		Download
Strava Splint Bath - Basic vs Smart Flyers		Download

Key Features

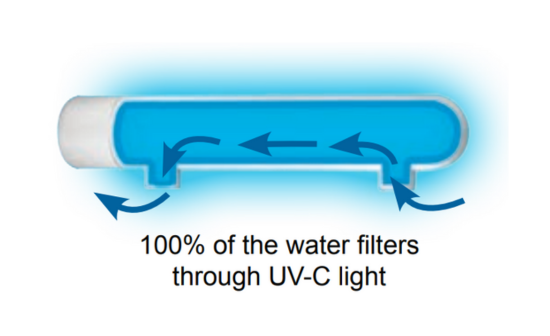

Dual Disinfection System - 99.9% Kill Rate

1. Effective Sterilisation with Ultraviolet-C wavelength at 254nm, killing viruses and bacteria by breaking the molecular bonds

2. High-heat sanitation cycle that runs nightly and manually at any time up to 85°c to kill microbes

3. Drainage quick and easy for cleaning water replacement

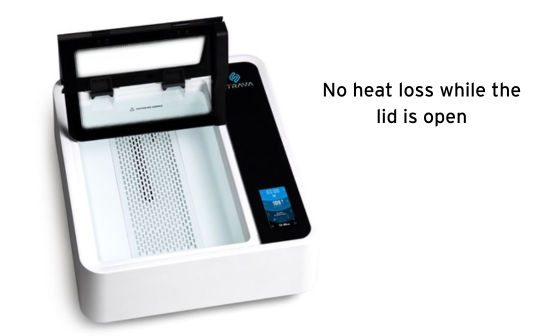

Heating Technology

Strava's unique internal heat exchanger is immersed directly in the circulating-water basin, ensuring fast heating, minimal thermal lag, and uniform heat distribution. An internal temperature control system allows temperature monitoring in real-time at extremely close tolerances.

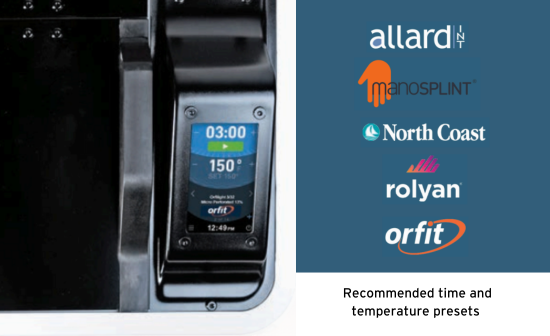

Temperature Presets

Choose pre-loaded thermoplastic settings from top manufacturers or create your own from the LCD touch screen - only available on the Strava Splint Bath.

Create custom presets for:
