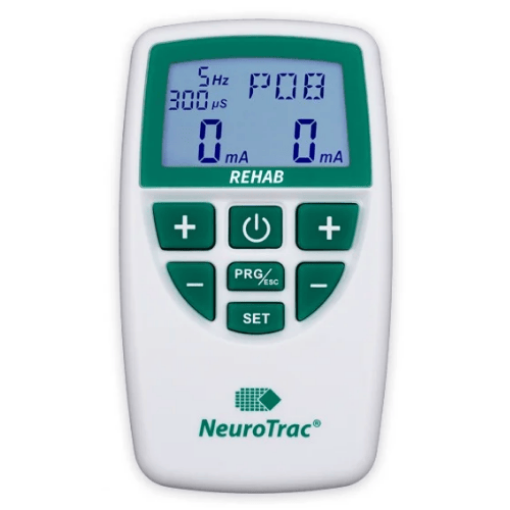

NEUROTRAC REHAB TENS

The NeuroTrac Rehab NMES is an advanced digital dual channel unit with a remote hand held button. It is designed for those that want more than the basic TENS machine. The TENS and NMS treatment modes provide maximum flexibility for pain management and muscle stimulation. The Rehab TENS is designed for use with muscle & sports related type injuries.

The NeuroTrac Rehab NMES machine is an advanced digital dual channel unit with remote hand held button. It has 10 preset TENS programmes and 10 preset neuro muscular stimulation programmes. The wired remote hand held button facilitates easy changing of output power and output modes.

Features

• Dual channel TENS & NMS device with remote hand button (wired)
• 10 preset TENS programme
• 10 preset neuro muscular stimulation programmes
• 2 customisable TENS and 1 customisable remote STIM programme
• Records time in use and average current (when locked)
• Clear bright backlight LCD allows the display to be read more easily in low light or dark conditions
• Keypad with bigger buttons for ease of use
• Compact, light and reliable

Technical Data

• Dual channel: individually isolated circuits.
• Amplitude: 0-90 mA into 500 Ohm load ; indication only. Actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 70 mA, at 1500 Ohms load the maximum will be limited to 65 mA.
• Type: Constant Current, maximum output voltage 180 Volts +10 / -30 Volts.
• Waveform: Asymmetrical, rectangular bi-phasic with zero DC current.
• Selectable pulse width: 50 ìS – 450 μS [2% accuracy].
• Pulse Rate selection: in the continuous mode 2 – 200 Hz [2% accuracy].
• Mode: Continuous, Burst or Modulated.
• Burst mode: Bursts of 9 pulses [200 μS] at 150 Hz or 185 Hz, over 2 seconds.
• Modulation mode: 6-second cycle of concurrent width modulation and pulse repetition rate modulation. TENS 7: Width starting at50 ìS and increasing exponentially to 250μS in three seconds and then returning back to 50 ìS in the next three seconds. Rate starting 20 Hz, increasing exponentially to 85 Hz and then returning to 100 Hz. TENS 8: Width fixed at 200 μS. Rate starting 32 Hz, increasing exponentially to 100 Hz over 3 seconds and then returning to 32 Hz in the next 3 seconds.
• Time duration of the custom programmes selectable: 1 minute to 12 hours.
• Low Battery Indicator: If the battery goes below 6.9 volts +/- 0.2 volts the battery symbol will flash on/off once every second.
• If the battery voltage is below 6.6 (+/- 0.2) volts the unit will not turn on.
• Open Electrode Detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero.

Specifications

Physical dimensions: 119.2 x 69 x 28.7 mm

Weight: 0.07KG without battery, 0.1KG with battery.

Environmental Conditions for use:
+5 to +40 degrees Centigrade. 15-93% Humidity.

Environmental conditions for storage & transport:
-25 to +70 degrees Centigrade. 15-93% Humidity.
