Kinterra

Brand: Proteor

The Kinterra Foot/Ankle System combines hydraulic and carbon fiber tech for improved gait in low-moderate impact K3 ambulators, especially on slopes. Adjustable dorsiflexion and plantarflexion enhance comfort, and the Dorsi-Assist spring reduces toe-catching risk during downhill transitions.

Have a Question? Contact Us

See Similar Products

Specifications
Documents & Downloads
Video

Products specifications

Functional Level	K3
Features	Hydraulic
Patient Maximum Weight (kg)	150
Waterproof	Weatherproof
Warranty	36 Months
Product Weight	795 - 992g
Size Range	22 - 30cm
Build Height	118 - 122mm
Heel Height	10mm

Product Files

Document Title	Description
Proteor - Order Form		Download
Kinterra Foot - Instructions for Use		Download

Key Features

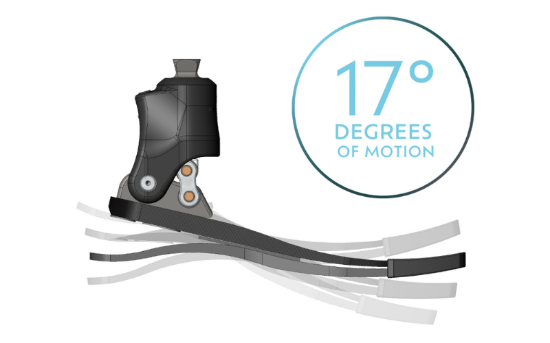

17° Hydraulic Ankle Articulation

15 degrees of plantarflexion and 2 degrees of dorsiflexion allow the foot to reach and maintain footflat across differing terrains and improved socket comfort while sitting

330lb User Weight Rating

Tested to over 3 million cycles at 330lbs / 150kg load

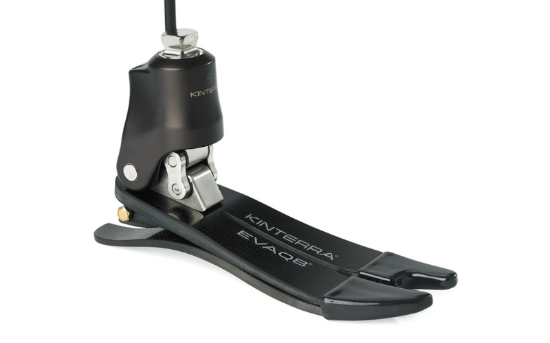

Available in EVAQ8

The EVAQ8 elevated vacuum system holds the foot securely in the socket. The vacuum system integrated into the heel is automatically actuated when the user walks. The air between the sleeve and the socket is continually evacuated to create a constant vacuum. Users enjoy heightened proprioception which makes walking safer since the prosthesis is easier to control.

Technical Specifications
